Custom Insulated Curtains

We offer solutions for all livestock including swine, cattle and poultry.

MAR-CO-LITE

COMPRESSED “R” 4. A six ply insulated curtain which promotes continuous feed conversion by helping to maintain a comfortable temperature within your facility. All insulated curtains are quilted every four inches allowing the curtain to fold more evenly when opening for ventilation.

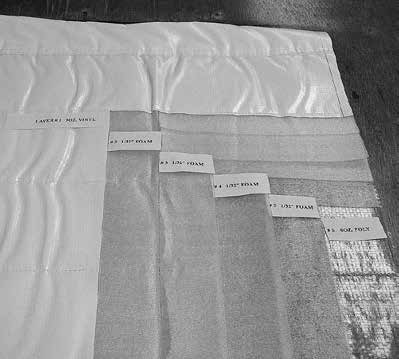

LAYERS:

1. 8.5 oz. P.S.Y. Vinyl
2. 1/32” LDPE Foam
3. 1/32” LDPE Foam
4. 1/32” LDPE Foam
5. 1/32” LDPE Foam
6. Ply Lite 4.5 oz. P.S.Y.

Carolyn on the Phone:
Our people make the difference in our quality “Made in the USA” products.

ROOM DIVIDERS

Room Dividers are made with Insulated MAR-CO-LITE for easy cleaning and are designed to fit your building specifications. They are manufactured with center and/or side Velcro which permits
convenient closing.

USES FOR ROOM DIVIDERS

DAIRY-Parlor Dividers

SWINE-Dividing walls for “all in and all out.”

POULTRY-Half house brooding, saves fuel – only heat the part you use.

MACHINE SHOP-Problems keeping your work area warm in the winter? Put up a Room Divider to keep the heat where you need it.

EVAPORATIVE COOL CELL & FAN COVERS

MADE FROM INSULATED MAR-CO-LITE-Hems are at top then down 16”, 32”, and 48” unless
otherwise requested.

QVP COOL CELL-Also available in quilted vinyl/poly with hems the same as above.

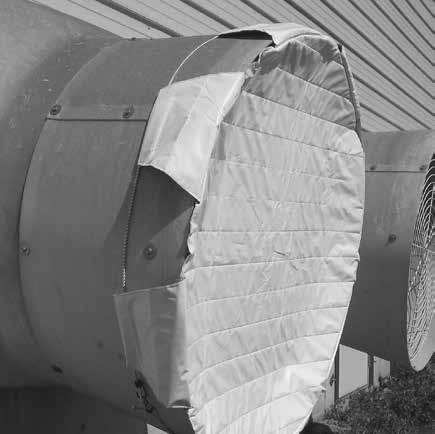

FAN COVERS-Fan covers available for inside mount or outside mount. Velcro is used on inside mount and cording is used on outside mounts. Covers are available in either square or round.

ACCESSORIES

AIR INLETS-12” TO 17” high sized per opening.

CLOSER STRIP-7” high made of same material as curtain.

END FLAPS-24” wide and 6” longer than curtain.

FEED-TUBE SLEEVE-5” ID Poly or Vinyl.

PULLEYS-7/8” galvanized.

S.S. MAIN CABLE-1/8” S.S. aircraft.

SWEDGE TUBING-1/2” x 10’ galvanized.

CURTAIN CLIPS-3”.

LIFT CORD- 100% polyester braid, 1,000 ft. per spool.

RETAINING ROPE-100% polyester braid, 1,000 ft. per spool.

SPLIT BOLTS-for 1/8” S.S. cable.

	Stephanie supervises our strict production quality standards:
	Our people make the difference in our quality “Made in the USA” products. Melissa at the Needle Machine:

Get Installation Assistance

Installation will be a breeze. Simply follow the instruction laid out here. We are always available to answer and additional questions you may have either online or over the phone.
