Inspection Equipment:

  • (.00035”) Volumetric Accuracy (Digital and Dial)
  • Bore Gages
  • Calipers (Digital and Dial)
  • CMM- Numerex BT 1518-10 DCC
  • CMM-Manager DCC Software
  • Height Gages
  • Inside and Outside Micrometers
  • Optical Comparator
  • Plug Gages
  • Ring Gages
  • Rockwell Hardness Tester
  • Surface Roughness Gages

Call Us Today

Feel free to External link opens in new tab or windowcall us and discuss your milling machine needs.




PL MFG, Division of Dynamics 360, Inc.

1. Company Background

- In Business since 1997
- 15 employees
- 18,000 (+) sq. ft. air-conditioned manufacturing space,
- 10,000 (+) sq. ft. additional storage space

2. Business Type

- Small corporation
- Woman owned
- Located in a designated Empowerment Zone (EZ) - ISO 9001-2000 Registered (Certification #02-223)

3. Key Machithery/Equipment n

||||

- Full 4 axis machining centers
- Full 3-axis turning centers with integrated sub-spindles
- Automated, bar-feeding turning centers
- Horizontal, multi-pallet machining centers
- 40 and 50-taper vertical machining
- Localized, induction heating
- Inspection/calibration laboratory

4. Existing Products

We manufacture custom components for the following industries/products:
- Automotive Industry
- Construction Industry
- Hand Tools
- Fasteners
- Precision Positioning Equipment
- Aerospace Industry
- Fluid Power Industry
- Food Service Industry - Agricultural Industry
- Military
- Wind Energy Industry

5. Total Experience of Employees

- We have a combined total of over 135 years experience

6. Quality System/Approvals/Training Program

- We are ISO 9001-2000 registered
- We are an approved supplier to Danaher Tool Corporation
- We have North Dakota's only active, formal Apprenticeship-Training Program for machinists, governed by the Bureau of Labor

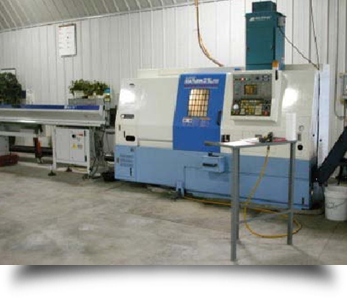

CNC Turning Machines

P. L. Manufacturing in Cooperstown, ND has a large variety of CNC machines available to handle any precision machining need you might have. We also have our own inspection laboratory for performing calibrations traceable to NIST. Please take the time to check out our detailed list below. We have also provided in a External link opens in new tab or windowdownloadable PDF format for your convenience.

HAAS model HL-1:

Chucking Lathe
20 H.P. Spindle
8” Power Chuck
10 Station Tool Turret

HAAS model HL-2:

Chucking Lathe
10” (Diam.) x 20” Capacity
20 H.P. spindledrive
10 Station Tool Turret
Fully Programmable Tailstock


HAAS model SL-30:

Chucking/Bar-Working Lathe
14.5” (Diam.) x 34” Chucking Capacity

2 1/2” Diam. Max Bar-feeding Capacity
30 H.P. spindle drive
12 Station Tool Turret
Fully Programmable Tailstock
Automatic Parts Catcher

Daewoo model Lynx-A:

Chucking/Bar-Working Lathe
11” (Diam.) x 12.7” Chucking Capacity
1 3/4” Diam. Max Bar-feeding Capacity
10 H.P. spindle drive 12
Station Tool Turret
Programmable Tailstock
Automatic Parts Catcher
12’ Hydroturn Barfeeder
External link opens in new tab or windowDaewoo model lynx A||||

Daewoo model Puma 200:

Chucking Lathe
15 H.P. Spindle
8” Power Chuck
10 Station Tool Turret
Tailstock



Kia model 21LMS:

Chucking/Bar-working Lathe
Sub-spindle
4th Axis Milling 20 H.P. main spindle drive
5 H.P. sub-spindle drive
12 Station ToolTurret
Parts Catcher
Iemca- Boss 547 12’
mag. bar-feeder



Daewoo model Puma 6S:

Chucking/Bar-working Lathe
15 H.P. Spindle
10 Station Tool Turret Tailstock
12’ Hydrostatic Bar-Feeder




Miyano:

Bar-working lathe
with live
milling 7.5 hp
12' Hydrostatic Bar feeder
Sub Turret 		Live tooling
1 1/16" bar capacity

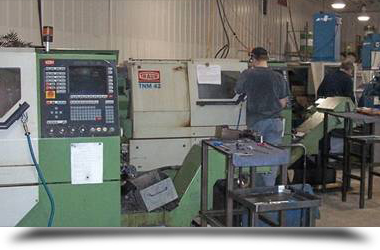

Screw Machines

External link opens in new tab or windowCNC screw machines||||
(2) 1 5/8” Traub TNM42
Single-spindle CNC




Screw Machine
12’ Magazine Bar Feeder
(2) Back-Working
(2) Pick-off Spindle



CNC Milling Machines

Daewoo Model DMV-400:

Pallet-changing VMC
22” x 22” x 16” (x,y,z) travels
10,000-RPM Max spindle speed

HAAS Model VF-4APC:

Pallet-changing VMC
50” x 20” x 25” (x,y,z) travels
20 H.P. Geared spindle drive
7500-RPM Max spindle speed
Full-4th Axis Machining
Coolant-through Spindle
Pallet Changer
Part-Probing System

HAAS Model VF-0E:

Vertical Machining Center
30” x 16” x 20” (x,y,z) travels
20 H.P. spindle drive
10,000-RPM Max spindle speed

Full-4th Axis Machining

Kitamura Mycenter 6:

Vertical Machining Center
50” x 25” x 25” (x,y,z) travels
50-Taper, 3-stage geared spindle
Full-4th Axis Machining capable

Daewoo Model H50-S:

Pallet-changing HMC
25” x 25” x 25” (x,y,z) travels
50-Taper, 3-stage geared spindle

Mitsubishi Model MH5B:

Pallet-changing HMC
Cat 50 Taper Integrated Spindle
25” x 25” x 25” (x,y,z) travels

30 H.P. Spindle drive
12000-RPM Max spindle speed
High Pressure TSC
 1,575 IPM Rapids

Mitsubishi Model MH4B:

Pallet-changing HMC
Cat 40 Taper Integrated Spindle
25” x 22” x 25” (x,y,z) travels

30 H.P. Spindle Drive
12000-RPM Max spindle speed
High Pressure TSC
1,575 IPM Rapids

CNC Machining Capabilities

External link opens in new tab or windowCNC machining capabilities||||

Milling Capacities (20 H.P.)

Horizontal: 31” x 26”
+ 4th Axis		Vertical: 50” x 25”
+ 4th Axis



Turning Capacities (10-30 H.P.)

Bar Feed: up to
2 1/2” Round		Chucking: up to 14 1/2” diam. x 34” long




Screw Machines
1/8” Diam. – 1 5/8” Diam. Capacity



Miscellaneous Equipment

External link opens in new tab or windowMiscellaneous-machine-equipment||||
External link opens in new tab or windowindustrial-machine-equipment||||

Induction Heat-Treating Machine:

20 KW power
Localized-treating
Up to 1 1/4” (Dia.) x 1”


2nd Op. machines
Band Saw		Bridgeport milling machines
Buffers		Grinders
Sanders
